20 December 2008

19 December 2008

GridPointsSurface02







GridPointsSurface01

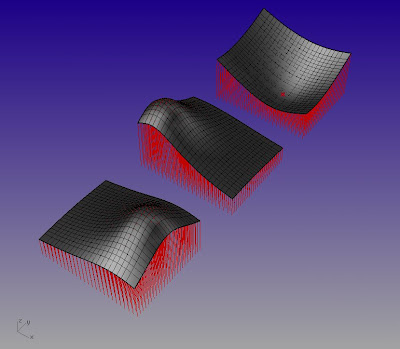

Grasshopper visual script for a grid points surface deformed by one point.
Next step is to realize countouring section of the surface in order to create a isoline field controlled by different points.

Visual script do:
.generate grid points
.generate line in z direction with lenghts controlled by referenced points x,y,z position
.generate grid points surface with end points of the lines
.draw section lines with variable distances

01 December 2008

IsoCurveSurface03.




Rhino Grasshopper isocurve surface file fixed with Andrea Graziano from DigitAG&.
